Simplex 4100 ES: Trouble & Supervisory Logs



***

***

***


Relevant Material: "The Simplex 4100ES Fire Alarm Control Panel is an intelligent, addressable system that uses IDNet technology to continuously monitor, poll, and analyze data from connected smoke, fire, and waterflow devices. It detects emergencies through three main methods: digital communication with "smart" sensors (TrueAlarm), monitoring water flow switches, and analyzing supervisory signals from sprinkler valves. [1, 2, 3]

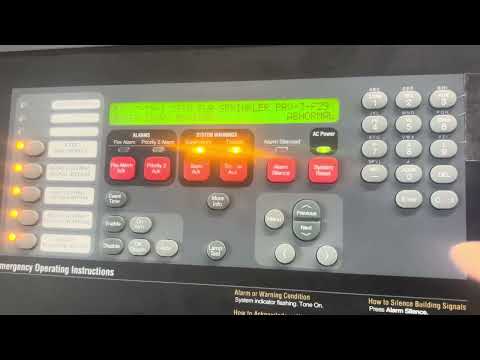

This video provides an overview of the Simplex 4100ES fire alarm system's components:.." (Google)
***
Relevant Material: "The first step in managing a trouble condition is to acknowledge the trouble. Acknowledging a trouble does two important things:  It records the time and date at which you observed the presence of the trouble and stores that information in the system’s historical log.  When you press the acknowledge key, the system displays specific data on the location of the trouble. It is important to understand that the FACP can be configured with either Global or Individual Acknowledge. These options function as follows:...The first step in managing an alarm condition is to acknowledge the alarm. Acknowledging an alarm does two important things:  It records the time and date at which you observed the presence of an alarm, trouble, or supervisory condition on the operator interface panel and stores that information in the system’s historical log.  When you press the acknowledge key, the system displays specific data on the location of the alarm. It is important to understand that the FACP can be configured with either Global or Individual Acknowledge. These options function as follows:  Global Acknowledge. When global acknowledge is enabled, one press of the ALARM ACK key acknowledges every abnormal point currently reporting an alarm status. This is helpful when a series of devices enter an alarm state (for example, all of the smoke detectors in an area of the building) and you want to acknowledge all of them at the same time.  Individual Acknowledge. If individual acknowledge is enabled, the ALARM ACK key must be pressed to individually acknowledge each alarm. Individual acknowledge must be selected if the panel is providing proprietary receiving service in accordance with NFPA72. The ALARM ACK key, which is used to acknowledge alarms (either globally or individually), is located just beneath the SYSTEM ALARM LED...The first step in managing a supervisory condition is to acknowledge the condition. Acknowledging a supervisory does two important things:  It records the time and date at which you observed the presence of the condition and stores that information in the system’s historical log.  When you press the acknowledge key, the system displays specific data on the location of the supervisory condition. It is important to understand that the FACP can be configured with either Global or Individual Acknowledge. These options function as follows:  Global Acknowledge. When global acknowledge is enabled, one press of the SUPV ACK key acknowledges every point currently reporting a supervisory condition.  Individual Acknowledge. If individual acknowledge is enabled, the SUPV ACK key must be pressed to individually acknowledge each supervisory condition. Individual acknowledge must be selected if the panel is providing proprietary receiving service in accordance with NFPA72..." (https://cdn.chipkin.com/assets/uploads/imports/resources/Simplex-4100ES-Operators-Manual.pdf)
****
Relevant Material: "Insured losses from severe weather, including fires and water damage, have escalated significantly, making 2024 the costliest year on record with over $9 billion in damages. As extreme weather becomes more frequent, 2025 remained in the top 10 for costs, with insured losses exceeding $2.4 billion, reflecting a new, higher baseline for insurance claims in Canada. [1, 2, 3, 4]
Key 2024-2025 Damage Statistics
  • Total Losses (2024): Exceeded $9 billion, driven by summer floods in Ontario and Quebec, the Jasper wildfire, and Calgary hailstorms.
  • Record Year (2025): 2025 losses, while lower than 2024, still exceeded $2.4 billion.
  • Insurance Trend: Since 2016, annual insured losses have tripled, averaging over $3 billion, compared to $1 billion in previous decades.
  • Wildfire Impact (2023): The 2023 season was the most destructive on record, with 15 million hectares burned, causing over $3.1 billion in insured damage.
  • Water Damage: Water-related events, including floods and heavy rainfall, are now the leading cause of personal property damage, with annual insured losses often exceeding $1.7 billion. [1, 2, 3, 4, 5, 6, 7, 8]
Insurance Coverage for Fire, Smoke, and Water
  • Fire/Smoke: Standard home insurance policies in Canada cover damage from fire and smoke. This includes damage to the structure, personal belongings, and additional living expenses if a home is uninhabitable.
  • Wildfire Smoke Damage: Covered if the smoke comes from a wildfire, regardless of its distance from the home. However, some insurers may deny claims if the damage is caused by "gradual" smoke rather than "sudden and accidental" events.
  • Water/Flood Damage: While pipe bursts and accidental indoor water damage are generally covered, standard policies often exclude overland flooding (rain/snowmelt) and storm surge. Overland flood coverage can usually be added as an endorsement.
  • Claims Trends: The Canadian Underwriter reports that smoke damage often causes higher cleanup costs than the fire itself. [1, 2, 3, 4, 5]
Insurance Market Impact
  • Premium Hikes: Due to high payouts, insurers are increasing rates, with home insurance premiums rising by an average of 33 per cent from 2018 to 2023.
  • Uninsurability: Over 1.5 million Canadian homes are considered at high risk for flood damage and cannot access affordable flood insurance.
  • Rising Costs: The cost of repairing and replacing personal property has increased by 485% since 2019, driven by high demand for contractors, inflation, and the severity of disasters.
  • Industry View: Public Safety Canada warns that the area burned by wildfires has doubled since the 1970s and is projected to double again by 2100. [1, 2, 3, 4]
Common Causes of Residential Property Claims
  • Water Damage: The leading cause of property damage in Canada, costing approximately $1.7 billion per year.
  • Fire: 20% of all residential fires are caused by electrical issues.
  • Winter Damage: Ice storms and pipe bursts contribute to the, often, billions of dollars in annual, as noted in the Western Financial Group top 7 claims report, and reiterated in recent industry statistics regarding high-cost events. [1, 2, 3].." (Google)
**
Relevant Material: "Water damage is the leading cause of home insurance claims in Canada, accounting for over 50% of claims and averaging tens of thousands of dollars per incident. Accidental fire sprinkler activation causes significant damage, with a single head releasing up to 60 gallons per minute, resulting in an estimated $2,000 of damage per minute. [1, 2, 3, 4, 5]
Fire Sprinkler Water Damage Statistics (Canada)
  • Accidental Activation Rate: Roughly 90% of all fire sprinkler activations are accidental or inadvertent, not caused by fire.
  • Damages Per Incident: A single activated sprinkler head can pour 60 gallons per minute, with water damage averaging $2,000 per minute until shut off.
  • Total Risk: Water damage has surpassed fire as the number one cause of property insurance claims in Canada.
  • Emergency Response: Due to delayed response times (10-20+ minutes) for fire services, a single accidental activation can cause 1,200 gallons or more of water to be released. [1, 2, 3]
Canada Insurance Coverage & Trends
  • Sudden and Accidental Clause: Insurance policies typically cover sudden, accidental burst pipes or sprinkler activations, but exclude damage from chronic, long-term leakage or neglect.
  • Rising Costs: Water damage claims are increasing, with insurance payouts doubling every five to ten years due to aging infrastructure, climate change, and weather-related events.
  • Increasing Premiums: Property owners are facing double-digit rate increases in insurance premiums for water damage.
  • Mitigation Tools: Due to high risks, some property owners use specialized tools, such as the Shutgun, to instantly turn off activated sprinkler heads and reduce damages. [1, 2, 3, 4].." (Google)
  • ***
